An environment sensitive architectural design & construction consultancy
Architect's Studio
Pune
2019
Techniques Cob Mudcrete
Area
250 sq.ft.
This structure was built entirely by our team - Hands-on during the lockdown, serving two primary purposes: as an architecture studio and as a demonstration center for the people of Pune to experience a mud-building firsthand by touching the walls and understanding the performance of materials like mud and insulation.

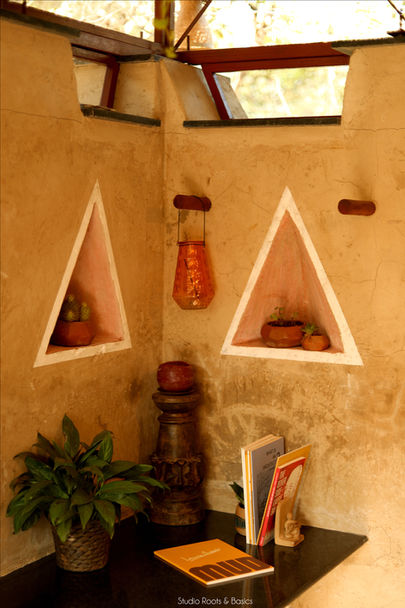

Located on a lush-green 2-acres farm where cats, dogs, birds, insects, humans and various forms of life coexist, the structure has earned some of the highest compliments - the flycatcher birds make their nest in the niches of the mud walls and give birth to the young ones, and a Siberian Husky and other dogs and cats often find solace in its cool interiors.
The foundation is constructed using discarded cement bags filled by using construction debris and partially built using mud concrete, created by using sifted waste materials to form graded aggregates. The soil used for the foundation was sourced directly from the site, with a pond created in the area that had been excavated. The walls were built using a cob technique with an inclined batter to achieve various facets, and the roof structure was formed using a bamboo skeleton, topped with tin sheets and bamboo mats underneath.
